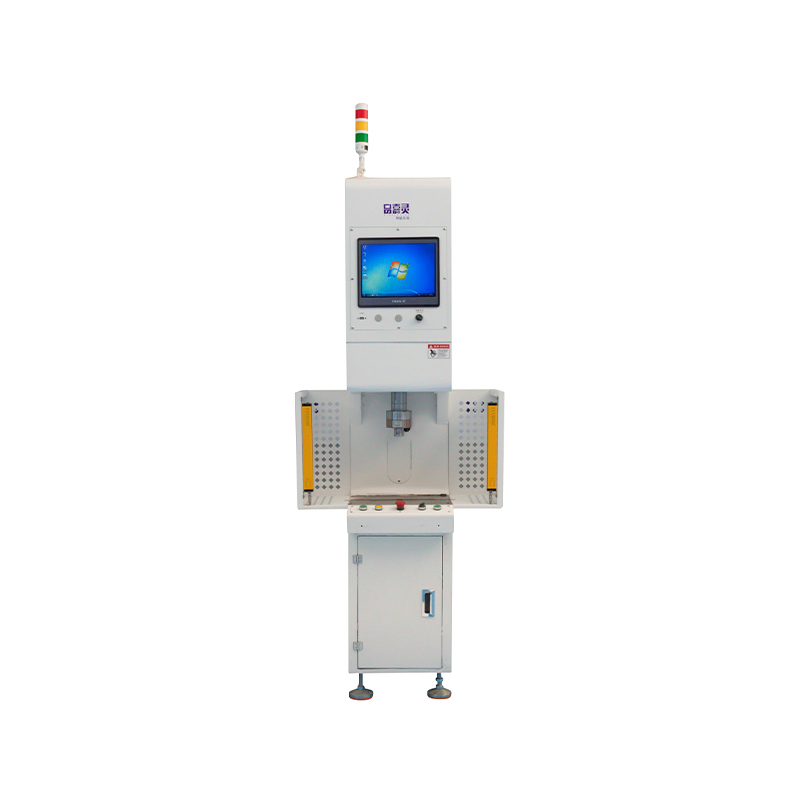

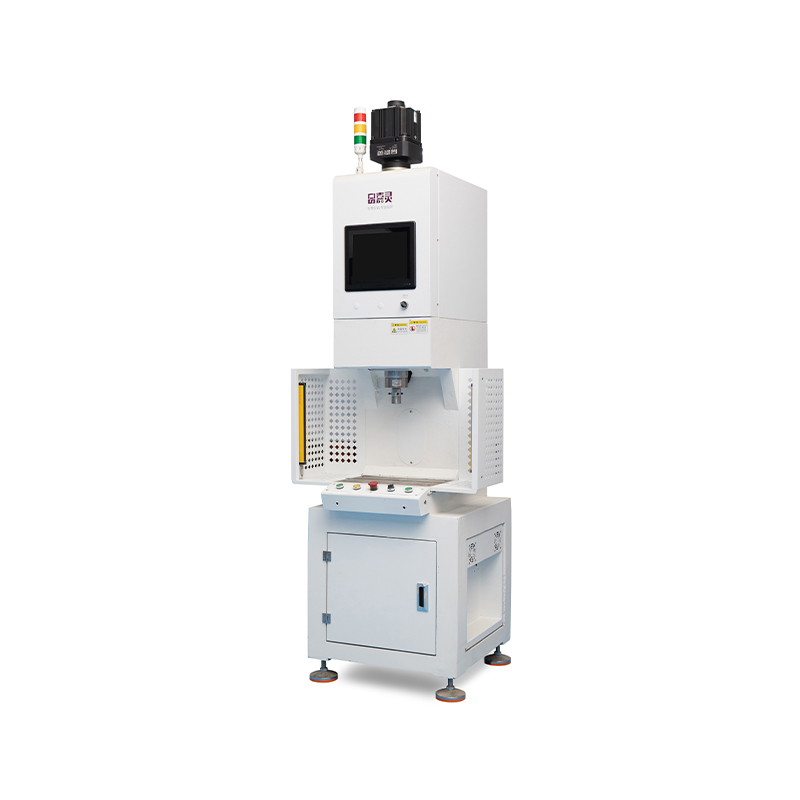

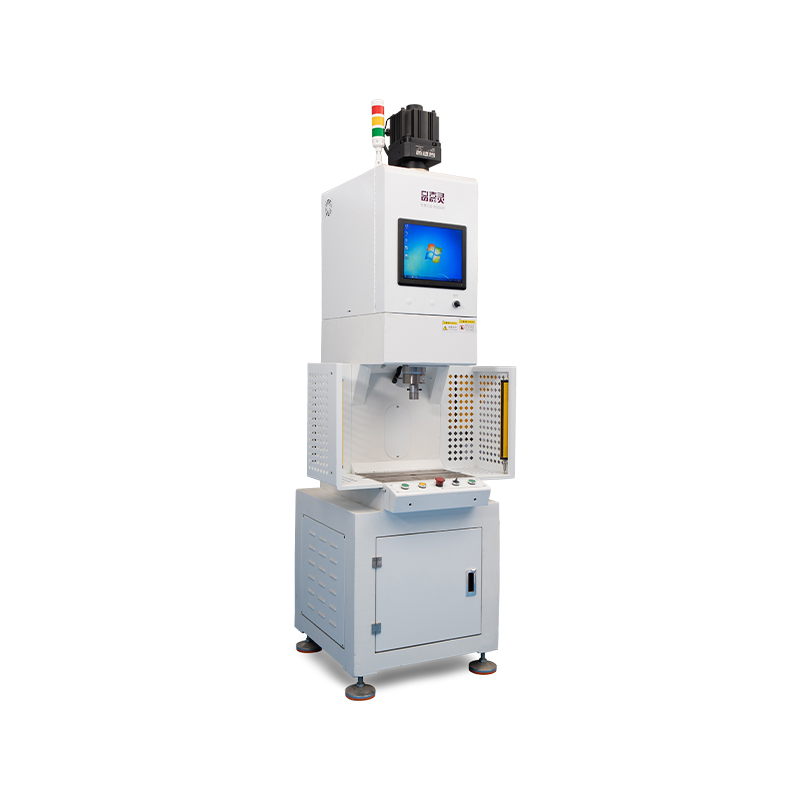

Servo Intelligent Press PJL-C-10KN

PJL-C-10KN
It is driven by an AC servo motor, and the rotary force is converted into a vertical direction through a high-precision ball screw. The pressure is managed by a pressure sensor installed at the front end of the driving part, and the speed and position are controlled by an encoder. At the same time, pressure is applied to the work object to achieve the processing purpose. The device can control the pressure, stop position, drive speed, and stop time at any time. It can realize the full process closed-loop control of the pressing force and the pressing depth during the press assembly. The entire press assembly process is divided into five stages: fast forward, detection, press assembly, pressure holding, and return.
